LED AUTOLAMPS

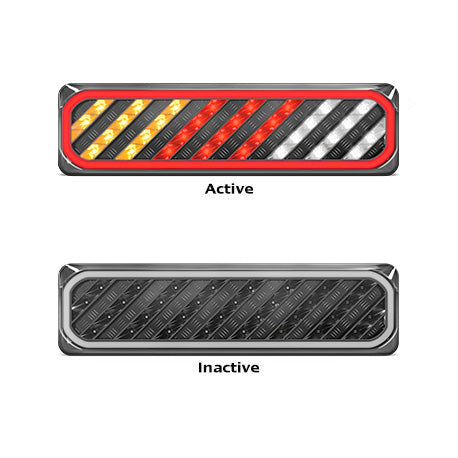

3856 Series Stop/Tail/Indicator/Reverse
3856 Series Stop/Tail/Indicator/Reverse
SKU:3856ARWM-2
Couldn't load pickup availability
Features / Specifications
- ECE/ADR Approved
- Propeller Plate Inner Design
- IP67 100% Waterproof
- Voltage Range 12-24 Volt

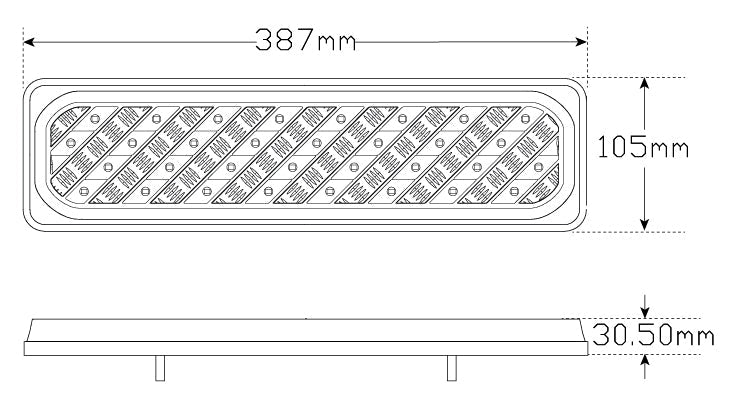

- 387mm x 105mm x 30.5mm
- 5 Year Warranty
LED Qty | 102 | |||
Cable | 40cm |
Fitting Instructions
Separate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided. Run the wire through the hole in the fixing surface then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.
