Couple Mate Pintle Towbar Adaptor 8 Hole

Couple Mate Pintle Towbar Adaptor 8 Hole


✓ Enhanced towing strength and reliability.Australian Made and Owned.
✓ Officially rated for 6.0t ATM heavy-duty applications.
✓ Boosts convenience with 8-mount holes and invertibility.

The Couplemate™ CM510 Pintle Hook Tow Bar Adaptor is the ultimate solution for versatile towing needs.

Designed with three mounting positions through eight holes, this adaptor allows for easy connection of pintle hooks to a 50mm receiver hitch, making it the perfect companion for heavy-duty towing.

Crafted with meticulous precision by Couplemate™ Precision Weld Technology, the CM510 sets the standard for durability and reliability in the market.

Constructed from solid K1045 Steel, this adaptor arm ensures unmatched strength and longevity, promising a secure towing experience every time.

With the Couplemate™ CM510 Pintle Hook Tow Bar Adaptor, you can trust that your towing requirements will be met with ease and efficiency.

Product Specifications

  • Materials: K14045 Steel, 250G Mild SteelAustralian Made and Owned.
  • Coating: Black Powder Coated
  • Hole Spacings: 85mm x 45mm
  • Mounting Hole: 12.50mm
  • Bar Size: 50mm x 50mm
  • Towing Capacity: 6000kg ATM

This product requires a 5/8″ or 16mm hitch pin (sold separately) to secure it in place. Couplemate™ recommends the use of a high-tensile pin.

This product can safely be used upside down (inverted).

ADR-Compliant Tow Bar Adaptor

The Couplemate™ Tow Bar Adaptor is manufactured in accordance with and tested to AS4177 and ADR 62/02.

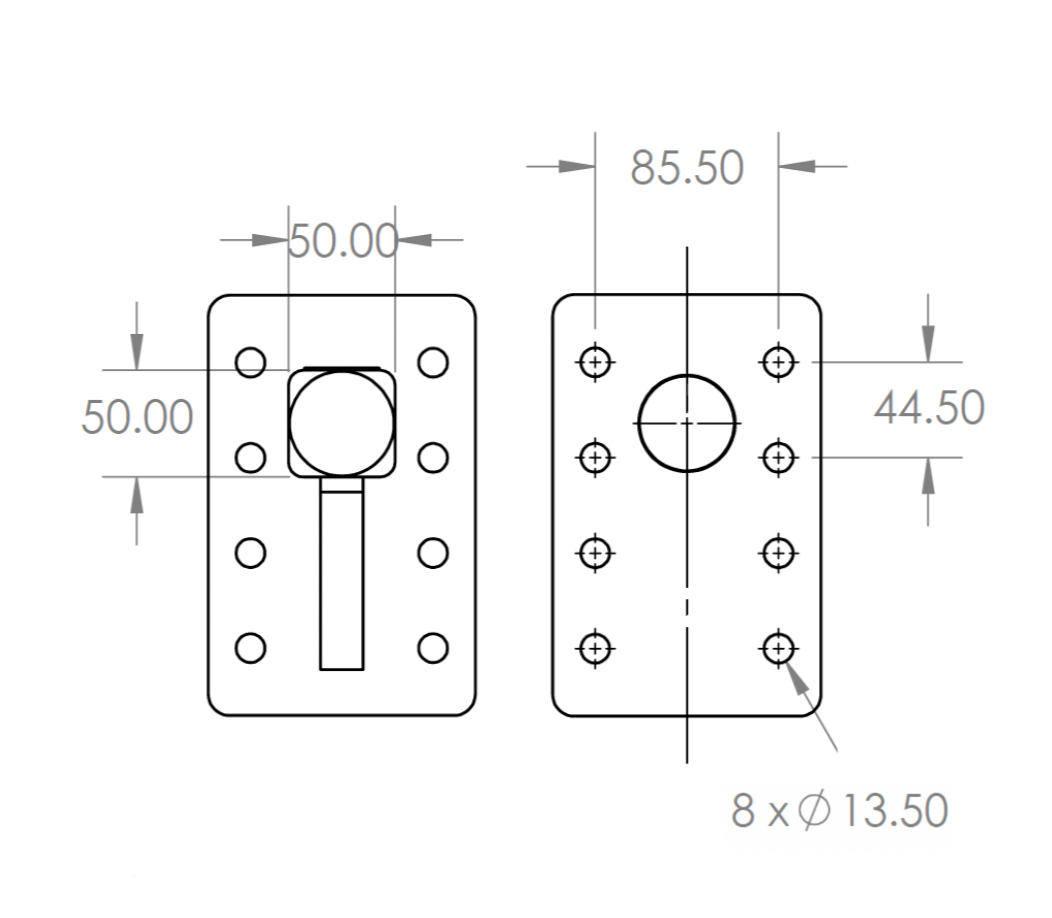

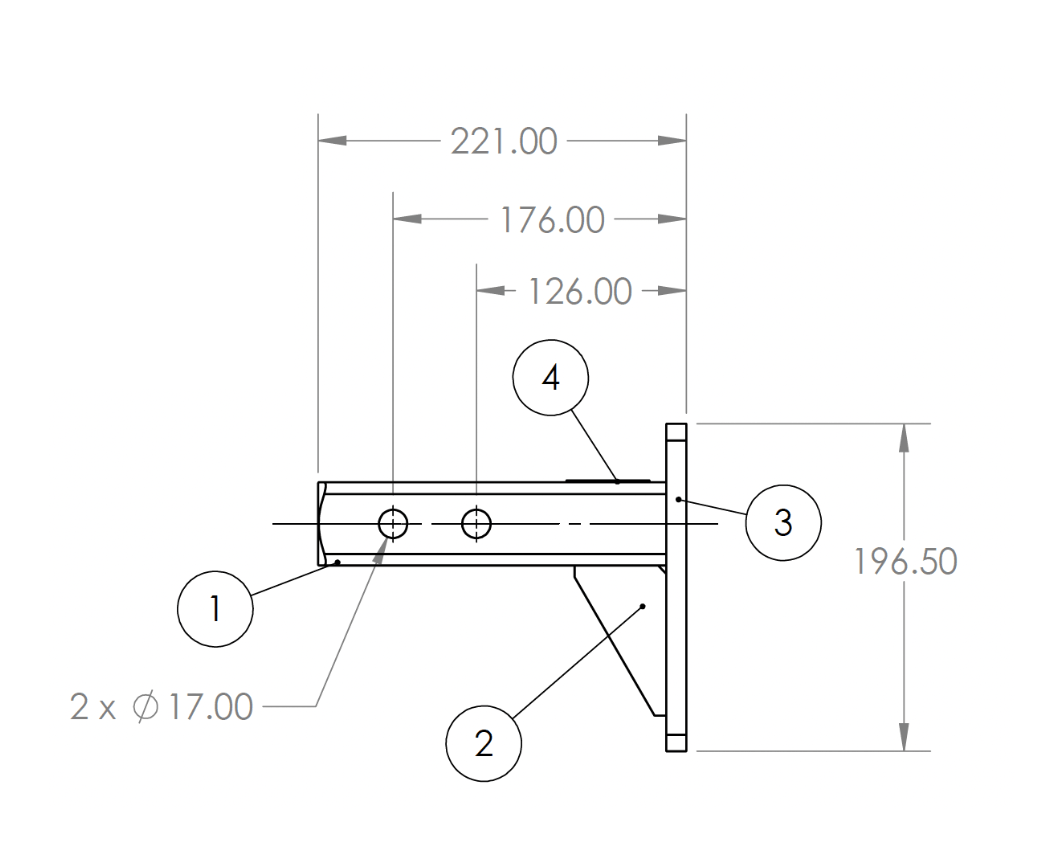

To view the full-size Engineering drawing, click here.
