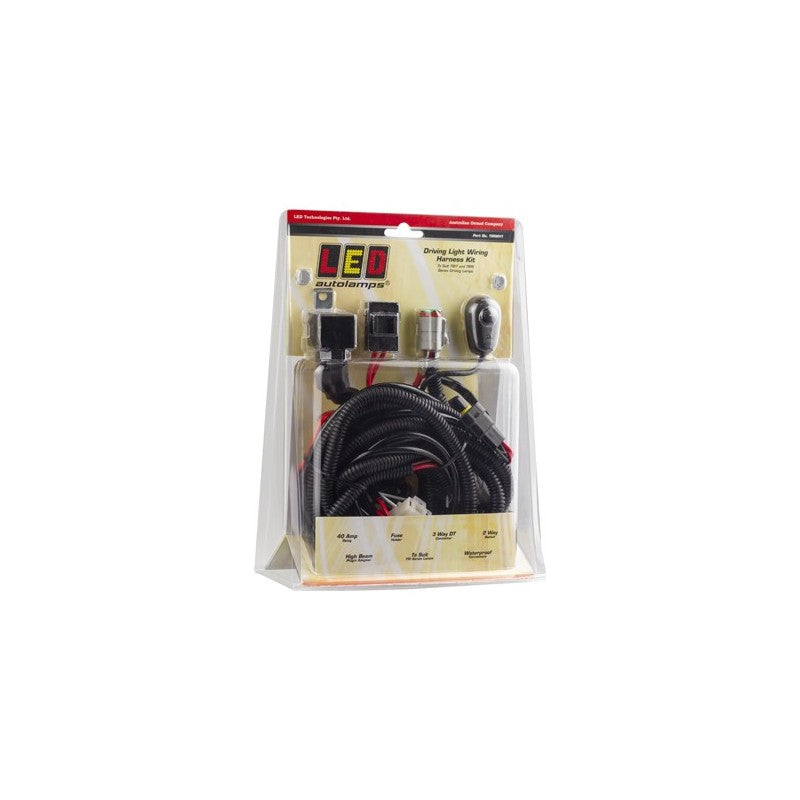

TIR OPTICS Wiring Harness Kit

TIR OPTICS Wiring Harness Kit


Features / Specifications

  • For TIR OPTICS 7" & 9" Driving Lamps
  • Waterproof Connections
  • 2 Way Switch
  • Incorporated Fuse Holder
  • High Beam Plugin Adapter
  • Provides Easy Lamp Installation
Length 4m
Voltage 12 Volt Only
Fuse 40A Blade
Relay 60A SPST
Adapters H4/HB3/HB4

Fitting Instructions

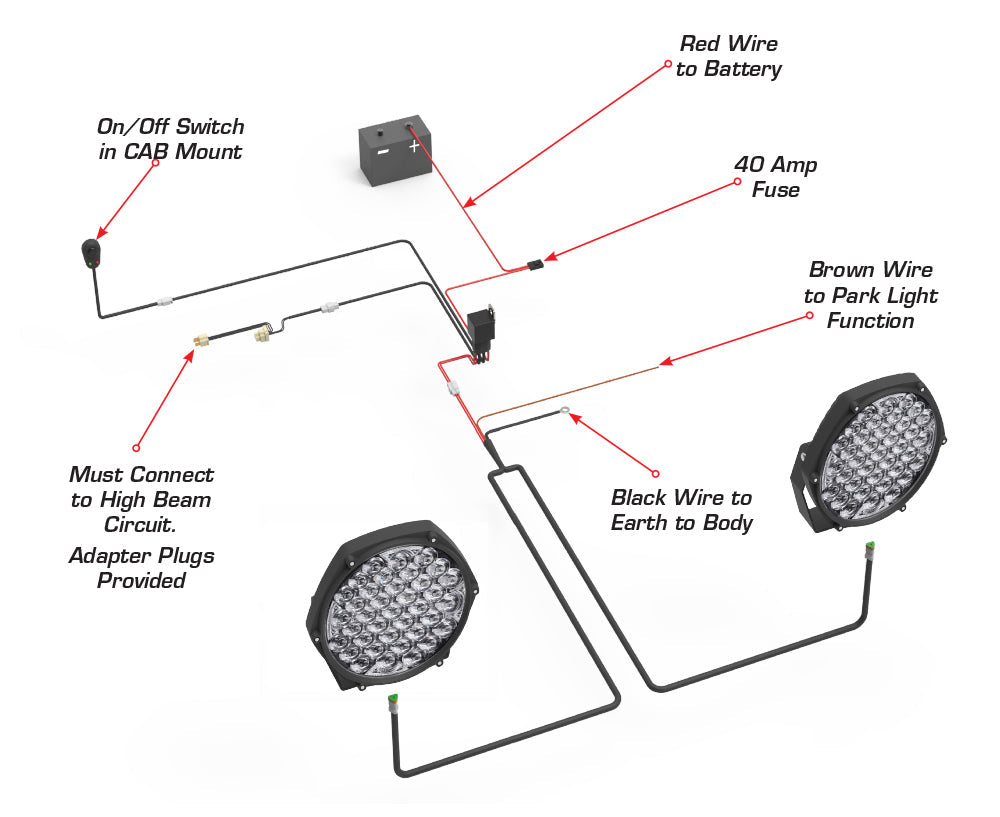

Follow the drawing below to install the harness into the vehicle. When routing cables within the engine bay, avoid any areas that produce heat which can damage the harness kit. If installed correctly the lamps will comply with wiring requirements for additional lighting on vehicles. For more information please refer to ADR 13/00.

NOTE: Kit installation requires adequate vehicle electrical knowledge/understanding.
A professional Auto Electrician is recommended for those who are not confident.

Lamps and Battery not included.
